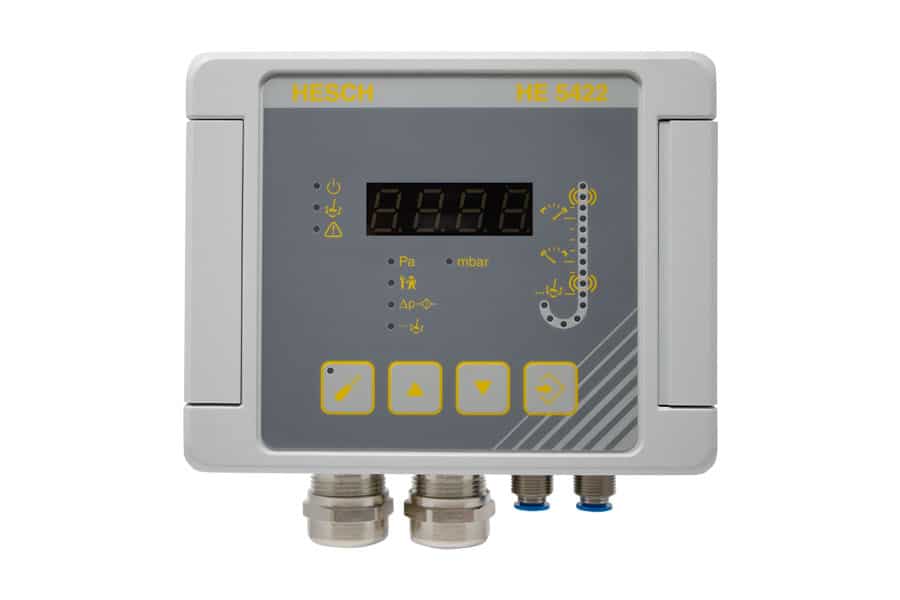

Heavy Duty- Differenzdruckregler HE 5422 HD
HE 5422 Differential Pressure Regulator Heavy Duty open

Heavy Duty Dif­fer­en­tial Pres­sure Reg­u­la­tor – HE 5422 HD

The differential pressure regulator HE 5422 HD monitors and controls the cleaning of industrial filter systems.



Measuring ranges: from ± 2.5 to ± 1000 mbar

Pre-coating and datahold function

Perfect for use in the heavy-duty industry

Robust aluminium die-cast housing

Approval for ATEX zone 22







Produkt anfragen





Category:

Heavy Duty Dif­fer­en­tial Pres­sure Reg­u­la­tor – HE 5422 HD

It can be used to cover dif­fer­en­tial pres­sure ranges from ± 2.5 to ± 1000 mbar, with a basic accu­racy of ± 1% of the final value.

The clean­ing range of the com­pact con­troller is defined by a lower and an upper thresh­old. The HE 5422 HD dif­fer­en­tial pres­sure reg­u­la­tor can be used world­wide thanks to the wide-range power sup­ply unit for 100 – 240 V AC and 24 V DC.
The robust die-cast alu­minum hous­ing (IP65) allows quick instal­la­tion and com­mis­sion­ing with an eas­ily acces­si­ble con­nec­tion area. The con­troller can be con­fig­ured on site at the device or via ser­vice PC using the USB/TTL adapter HE 5851 (option) and the soft­ware “Easy­Tool Con­trols”. Thanks to uni­form and self-explana­tory icons, the HE 5422 HD can be oper­ated intu­itively and fits seam­lessly into the mod­ern HESCH prod­uct line.

Details

– Pre-coating and data hold function
– Analog output 0…10 V / 0(4)…20 mA, galvanically isolated
– Test lead connection (quick coupling) Ø 6 mm
– Housing dimensions 151 × 125 × 60 mm (W × H × D)
– Operating and fault message
– Δp cleaning, low alarm, high alarm
– Basic accuracy ± 1% of full scale
– Explosion protection ATEX zone 22
– Protection class IP65
– EasyTool Controls 4.0
– Service interface with USB/TTL adapter (option)

Technical data

HE 5422 HD
Sup­ply
Volt­age100…240 VAC ± 10 %, 24 VDC ± 10 %
Power con­sump­tionMax­i­mum 5 W
Sen­sor sys­tem
Mea­sur­ing range(mbar)± 2.5, ± 5, ± 10, ± 25, ± 50, ± 100, ± 1000
Max. dif­fer­en­tial pres­sureMea­sure­ment range:± 2.5 mbar… ± 10 mbar 0.35 bar
Mea­sure­ment range:± 25 mbar 0.5 bar
Mea­sure­ment range:± 50…± 100 mbar 1 bar
Mea­sure­ment range:± 1000 mbar 5 bar
MediumAir as well as dry, non-aggres­sive mat­ter
Mea­sur­ing sys­temPiezore­sis­tive
Mea­sur­ing ranges
(mbar) (mbar)		± 2.5 … ± 10± 25 … ± 100± 1000
  Basic accu­racy± 1.25 % FSO
T = 25 °C		± 1.0 % FSO
T = 25 °C		± 0.5 % FSO
T = 25 °C
  Total error± 2 % FSO
T = 0…60°C		± 1,5 % FSO
T = 0…60°C		± 1,0 % FSO
T = 0…60°C
Con­nec­tion type pneu­maticHE 5422 HD
2 x Schott push-in fit­tings (nickel-plated brass) for 6 mm hose outer
diam­e­ter
Input/Output
Ana­log out­put (not
gal­van­i­cally iso­lated)		0…10 V0(4)…20 mA
  Max. per­mis­si­ble loadRL ≥ 1 kΩRA ≤ 400 Ω
Dig­i­tal inputsStart, post-clean­ing, mea­sured value hold func­tion, inter­nally
sup­plied 24 VDC / 1 mA
Relay out­put1 changeover con­tact: 250 VAC, 5 A as com­bined oper­at­ing
and error mes­sage
1 NO con­tact: 250 VAC, 5 A as clean­ing mes­sage
2 changeover con­tacts: 250 VAC, 5 A as alarm mes­sage
Soft­ware /
ser­vice
inter­face		Easy­Tool Con­trols 4.0 with USB / TTL adapter required (HESCH item no.: #61000011)
Hous­ing
ModelHE 5422 HD
Dust­proof die-cast alu­minium hous­ing (IP 65), pow­der-coated
Dimen­sionsHE 5422 HD
162.7 × 165 × 61.7 (W × H × D) incl. con­nec­tion cou­pling
Pro­tec­tion classIP 65
Instal­la­tionWall mounted, ver­ti­cal mount­ing posi­tion
Cable glandHE 5422 HD
2 × M25 with mul­ti­ple seal­ing insert for 3 lines of diam­e­ter 7mm,
nickel-plated brass
Envi­ron­men­tal Con­di­tions
Stor­age-20°…+70° C
Trans­port-40°…+85° C
Oper­a­tion-20°…+55° C
In ATEX-Zone : --20°…+40° C
Rel­a­tive air humid­ityRel­a­tive humid­ity 95%, no con­den­sa­tion per­mit­ted, KUF accord­ing to
DIN 40400
Air and creep­age dis­tances
Pol­lu­tion degree 2
Over­volt­age cat­e­goryII
Power Con­nec­tion
Con­nec­tion typeSup­ply
Cross sec­tion rigid/flex: max. 2.5 mm²;
flex .: max. 1.5 mm² with wire end fer­rule

Rest
Cross sec­tion rigid / flex .: max. 1.5 mm²; flex .: max. 0.75 mm²
with wire end fer­rule

Errors and omis­sions excepted
