Differenzdruck-Messumformer HE 5413
Differenzdruck-Messumformer mit drei Messkanaele mit jeweils frei waehlbaren Messbereichen

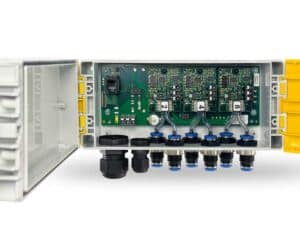

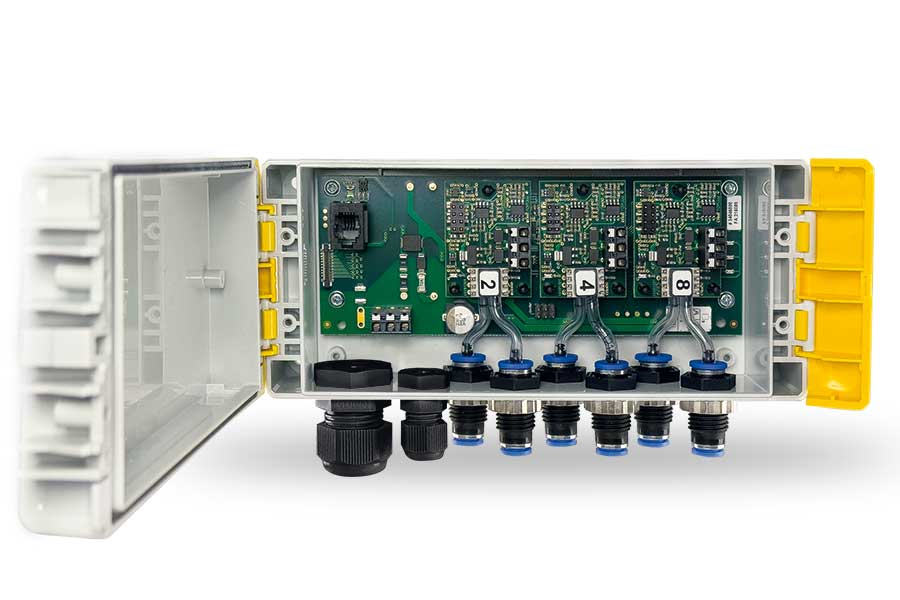

HE 5413 Multiple differential pressure transmitter (inside view)

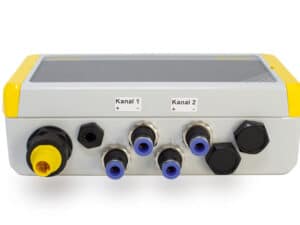

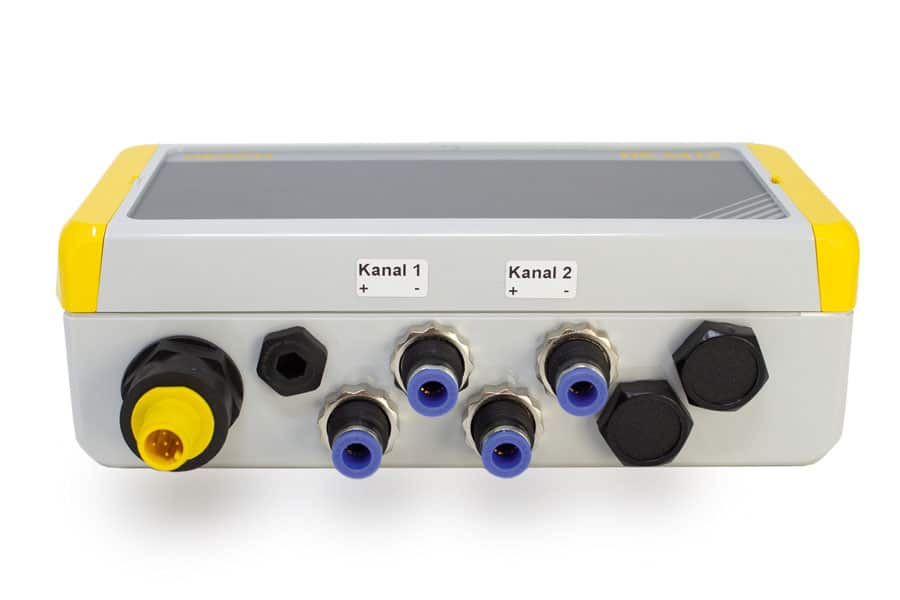

Differential pressure transmitter with M12-connection

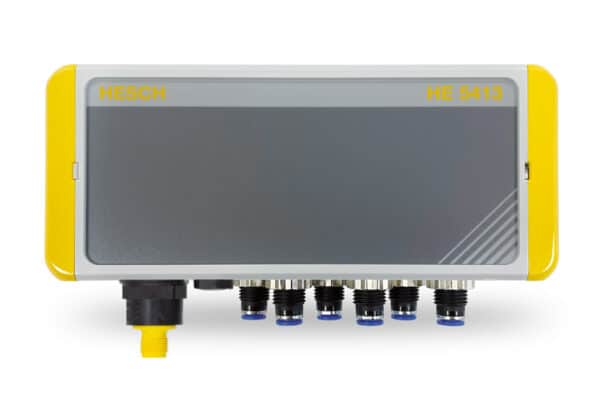

Mul­ti­ple trans­mit­ter HE 5413

Differential pressure transmitter with up to 3 measuring channels in one housing – Ideal for multi-stage filter systems



Flexible application with up to 3 pressure measuring ranges in one device

Simple, space-saving installation

Tool-free connection without opening the housing

IP65 housing - also for outdoor operation

Individual setting of parameters via EasyTool software







Produkt anfragen





Category:

Mul­ti­ple trans­mit­ter HE 5413

The HE 5413 mul­ti­ple mea­sur­ing trans­mit­ter with up to three mea­sur­ing chan­nels in one device is used in fil­ter and dedust­ing tech­nol­ogy as well as ven­ti­la­tion and build­ing ser­vices engi­neer­ing. There it mea­sures the pres­sure above fil­ter ele­ments or the extrac­tion pres­sure com­pared to the envi­ron­ment in order to deter­mine the degree of con­t­a­m­i­na­tion of the fil­ter or to con­trol the per­for­mance of the extrac­tion fan.

The com­pact device means that users do not need to use sev­eral indi­vid­ual trans­mit­ters, which reduces both instal­la­tion effort and costs. This results in a more effi­cient and cost-effec­tive solu­tion for the mea­sure­ment require­ments in var­i­ous appli­ca­tions.

The device is designed for wall mount­ing and can be oper­ated with a power sup­ply of 19-30 V DC or 100-240 V AC. Devices with 24 V DC can be com­mis­sioned quickly and com­pletely with­out tools thanks to the M12 con­nec­tor, as the device does not need to be opened. The mea­sur­ing hoses are con­nected via a prac­ti­cal plug-in con­nec­tion, which makes instal­la­tion even eas­ier.

For use in harsh indus­trial envi­ron­ments, such as com­bus­tion tech­nol­ogy, we also sup­ply the HE 5413 mul­ti­ple mea­sur­ing trans­mit­ter in a robust die-cast alu­minum hous­ing. This ensures increased resis­tance to adverse con­di­tions and thus offers a reli­able solu­tion for demand­ing envi­ron­ments.

The HE 5413 can also be used safely in ATEX Zone 22 haz­ardous areas.

Typ­i­cal appli­ca­tions & areas of use of the HE 5413 mul­ti­ple trans­mit­ter

  • Inde­pen­dent fil­ter mon­i­tor­ing
  • Pressure/suction con­trol
  • Over­pres­sure and under­pres­sure mea­sure­ment
  • Vol­ume flow measurement/control
  • Level mea­sure­ment (bub­ble method)
  • Pre­ci­sion air duct mea­sure­ment
  • Clean room over­pres­sure mon­i­tor­ing
  • Burner vac­uum mea­sure­ment
  • Process fur­nace sup­ply air mon­i­tor­ing
  • Fil­ter and dedust­ing tech­nol­ogy
  • Ven­ti­la­tion and build­ing tech­nol­ogy
  • Valve and flap con­trols
  • Clean room and lab­o­ra­tory tech­nol­ogy
  • Fir­ing tech­nol­ogy
  • Extrac­tion sys­tems
  • Build­ing automa­tion / tech­nol­ogy
  • Sup­ply air mon­i­tor­ing of any kind

Indi­vid­u­ally adjustable via PC soft­ware



The indi­vid­ual mea­sur­ing range is set/scaled using the Easy­Tool Con­trols 4.0 soft­ware.
This can also be used to save fac­tory para­me­ters so that they can be con­ve­niently loaded onto any num­ber of devices.

EasyTool Controls 4.0

The soft­ware func­tions at a glance:

  • Auto­matic detec­tion of the con­nected device (man­ual device selec­tion pos­si­ble)
  • Update of the device soft­ware and dis­play of the device infor­ma­tion
  • Process data record­ing in CSV files
  • Save device para­me­ters to PC and load from PC (e.g. as fac­tory para­me­ter set)
  • Out­put or print device para­me­ters in PDF

Do you have any ques­tions about the HE 5413 mul­ti­ple trans­mit­ter?

Our con­tact per­sonswill be happy to advise you with­out oblig­a­tion.

Technical data

HE 5413
Sup­ply volt­age24 V DC ± 10% | 100 ... 240 V AC / 50 Hz
Power inputmax. 5 W
dp mea­sure­ment inputs2 ... 3
Cur­rent out­put4...20 mA; Ana­logue sig­nal of the mea­sured dif­fer­en­tial pres­sure
Ini­tial load: Load = 600 Ω
Volt­age sup­ply0...10 V
Ini­tial load: Load = 1kΩ
Ser­vice inter­faceRJ-10 socket (TTL adapter required)
Hous­ing mate­r­ialPoly­car­bon­ate
Parts in con­tact with gas: Polyurethane
Mount­ing posi­tionWall mount­ing, as required; prefer­ably hor­i­zon­tal with con­nec­tions at the bot­tom
Dimen­sion191 x 80 x 60 mm (W × H × D)
Weightca. 450 g
Degree of pro­tec­tionIP65
Explo­sion pro­tec­tionII3D Ex tc IIIC T135° Dc
Stor­age and trans­port tem­per­a­ture-40° … +70° C
Ambi­ent tem­per­a­ture Oper­a­tion-20° … +50° C
Con­nec­tion pres­sure per mea­sur­ing input2 x push-in con­nec­tion for hose Ø 6 mm (exter­nal)
Elec­tri­cal con­nec­tion• Push-in spring-loaded ter­mi­nals for rigid and flex­i­ble con­duc­tors
• or optional M12 plug, 5-pin (only for 24 V DC devices)
Cable glandM20 for stan­dard sig­nals; M12 for sup­ply
EMCDIN-EN 61000-6-2, DIN-EN 61000-6-3
SENSOR SYSTEM
Mea­sur­ing range (mbar)± 2.5; ± 5; ± 10; ± 25; ± 50; ± 100; ± 350; ± 1000
Fac­tory set­ting uni­di­rec­tional (avail­able pre-para­me­terised for an extra charge)
Max. Over­load pres­sure *
Mea­sur­ing range± 2.5 … ± 10 mbar (0.35 bar);
± 25 mbar (0.5 bar);
± 50 … ± 100 mbar (1 bar);
± 350 … ± 1000 mbar (5 bar)
MediumAir and dry, non-aggres­sive gases
Mea­sure­ment sys­temPiezo resis­tive
SYSTEM PRECISION
Mea­sur­ing range & basic accu­racy± 2.5 ... ± 10 (± 2 % FSO**);
± 25 ... ± 100 (± 1.5 % FSO**);
± 350 ... ± 1000 (± 1.0 % FSO**)
* The max­i­mum pres­sure that can be exerted on one pres­sure port rel­a­tive to the other port or while only one pres­sure port is con­nected with­out caus­ing leaks/damage to the sen­sor. **FSO = full-scale out­put

Errors and omis­sions excepted

Downloads

Data sheet HE 5413: Ger­man | Eng­lish

Oper­at­ing instruc­tions – Ger­man
Oper­at­ing instruc­tions – Eng­lish
