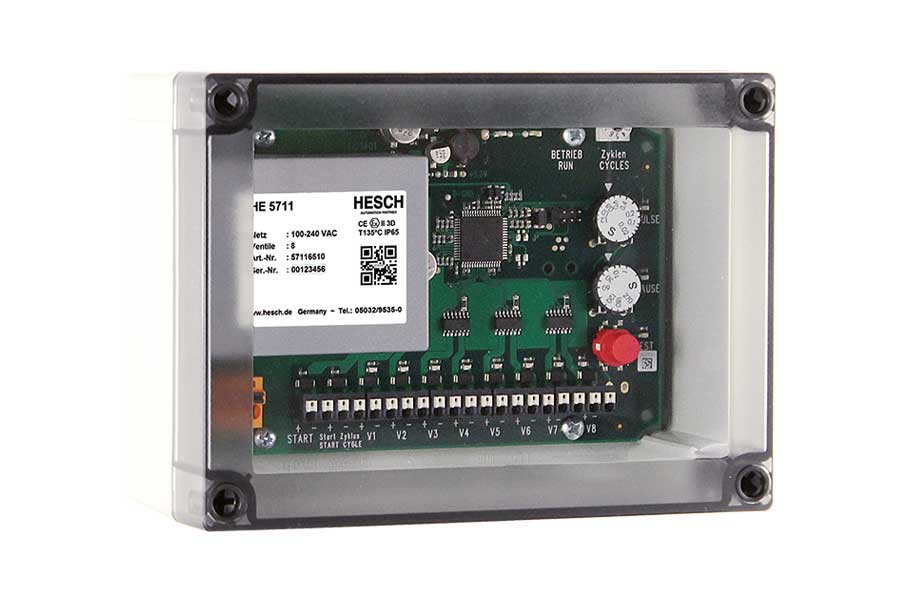

HE 5711 valve control in dust-tight Makrolon housing with ATEX approval (Zone 22)

Valve con­trol – HE 5711 (hous­ing)

Small control unit with attractive price/performance ratio

Control of up to 8 valves

2 operating modes: continuous operation or cyclic operation

Function display (LEDs) for all valves

Automatic valve detection

Attractive price/performance ratio







Produkt anfragen





Category:

Valve con­trol for all volt­age ranges

The micro­con­troller-based valve con­trol HE 5711 is used for the cycle con­trol of elec­tro­mag­netic valves in indus­trial dust fil­ter sys­tems. The flex­i­ble design con­cept enables use as astan­dard rail ver­sion or as a con­trol unit in a dust-tight Makrolon hous­ing with ATEX Zone 22 approval. The con­troller auto­mat­i­cally detects the num­ber of sole­noid valves con­nected. The clean­ing processes are time-con­trolled – for this pur­pose, the pulse and pause times are set via poten­tiome­ters. After the end of nor­mal clean­ing, the con­trol sys­tem can carry out post-clean­ing if desired.

Applications

Bunker top filter, industrial vacuum cleaner

Technical data

HE 5711 Hous­ing
Sup­ply volt­age100 – 240 V AC, 50 – 60 Hz
Option: 24 V DC ± 10% [SELV]
Power con­sump­tion30 VA, own power con­sump­tion about 3 W
LEDs4 × for valve con­trol, red
RUN, green
PULSE, yel­low
PAUSE, yel­low
TEST, green
Con­trol ele­mentsBut­ton TEST: the next valve is actu­ated
PULSE, set­ting the pulse period
Poten­tiome­ter from 0.02 and 1.2 sec­onds

PAUSE, set­ting the pause time
Poten­tiome­ter from 1 and 270 sec­onds

CYCLES: set­ting the cycles
Rotary coded switch 0 - 9; 0 deac­ti­vates the func­tion
InputsSTART, Post-clean­ing
Valve out­puts8
Valve volt­age 24 V DC / 1A, short-cir­cuit proof
Valve cur­rentSpring ter­mi­nals for 1.5 mm²
EMCBS-EN 61000-6-2 (inter­fer­ence immu­nity in the indus­trial sec­tor)
BS-EN 61000-6-4 (inter­fer­ence emis­sions in the indus­trial sec­tor)
Explo­sion pro­tec­tionOnly with the ver­sion in the dust-tight Makrolon hous­ing
Valve con­trol – HE 5711 (Hous­ing)
Hous­ingCon­struc­tion on a stan­dard­ised rail sup­port; 165 mm × 111 mm (W × H)

Errors and omis­sions excepted

Downloads

Dec­la­ra­tion of Con­for­mity HE 5711 – Ger­man

Dec­la­ra­tion of Con­for­mity HE 5711 – Eng­lish

Oper­at­ing instruc­tions HE 5710/HE 5711 – Ger­man

Oper­at­ing Instruc­tions HE 5710/HE 5711 – Eng­lish

Data sheet HE 5711 – Ger­man

EPLAN macros HE 5710 / HE 5711
